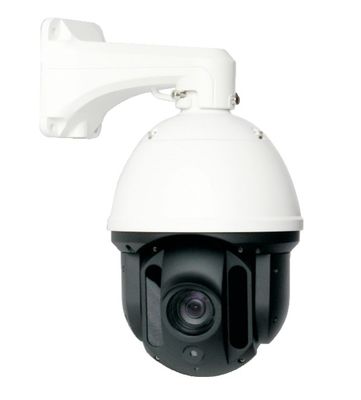

Human Motion Tracking Long Range IR Night Vision 4MP 37X Laser Zoom Optical Starlight Dome PTZ High Speed ​​Zoom Camera

Human Motion Tracking Long Range IR Night Vision 4MP 37X Laser Zoom Optical Starlight Dome PTZ High Speed ​​Zoom Camera
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
Specification
product name
Laser IR 800m dual-view dome camera
Detector type
Amorphous silicon infrared microbolometer (without TEC)
Pixel size
384x288/25um
Temperature range
-20～350℃, can be extended to 2000℃
Temperature measurement accuracy
Less than 2℃ or 2%
Field of view
29°×22° (electric/manual lens optional)
Spatial resolution
1.31mrad
Imaging range
0.3m～∞
Atmospheric transmittance correction
Automatically calculate and correct temperature according to meteorological parameters
Temperature measurement mode
Real-time display of cursor point temperature, global high and low temperature tracking, global average temperature, points,
lines, rectangles, circles, ellipses, polygons, etc.
High and low temperature alarm
Sound and light alarms on the control terminal, and record logs, automatically store temperature data and image snapshots when the
alarm is triggered
Image freeze
support
Color palette
10 kinds of white hot, black hot, iron red, rainbow, etc.
Imager
1/1.8” Progressive Scan CMOS
Effective Pixels
2560X1440, 4million pixels
Minimum illumination
Color: 0.001 Lux @(F1.5, AGC ON); B/W: 0.0005 Lux @(F1.5, AGC ON)
Automatic control
Auto white balance, auto gain, auto exposure
Signal-to-noise ratio
≥55dB
BLC
switch
Electronic shutter
1/25～1/100,000 second,
Day and night mode
Filter switch
Digital zoom
16 times
Focus mode
automatic / manual
focal length
6.5~240mm, 37x optical
Maximum aperture ratio
F1.5-F4.0
Horizontal perspective
60.5-2.3
Minimum working distance
100mm (wide angle), 1000mm (distal)
Horizontal range
360° continuous rotation
Horizontal speed
0.5°～150°/s, multiple manual control levels can be set
Vertical range
-3°～+93°
Vertical speed
0.5°～100°/s
Proportional zoom
support
Number of preset points
255
Cruise scan
6 lines, 18 preset points can be added to each line, and the dwell time can be set
Power-off self-locking
support
Network Interface
RJ45 10Base-T/100Base-TX
Maximum image size
1920×1080
Frame rate
25/30 fps
Video compression
H.265 / H.264 / MJPEG
Interface Protocol
ONVIF,GB/T 28181
Network protocol
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6
Simultaneous visit
Up to 6
Dual stream
support
Local storage
Micro SD card storage
Safety
Password protection, multi-user access control
power supply
AC24V, 50Hz
power
36W
Protection level
IP66, 4000V lightning protection, anti-surge, anti-surge
Operating temperature
-40℃～65 ℃
Working humidity
Humidity is less than 90%

FAQ

1. Who we are?
Hangzhou Huanyu Vision, established in 2019, is based in Zhejiang, China. We have more than 50 staff. Our market is Eastern Asia(25.00%), North America(25.00%), Western Europe(20.00%), Eastern Europe(15.00%), South Asia(5.00%).

2. What warranty do we offer?
We always make a pre-production sample before mass production, and always make total and final Inspection before shipment.

3. What do we have?
Zoom camera module, Zoom camera, Camera block, Marine PTZ, IR PTZ, 4G PTZ.

4. Why can you buy from us?
More than 10-year experience in zoom camera module and PTZ design. Our factory covers an area of 2500 square meters, with 200 employees and 30 R&D engineers. We were awarded National High-tech Enterprise, Provincial R&D Center in China.

5. What services can we provide?
OEM and ODM service is available.
Deliver goods on schedule, fast delivery.
Optional shipping term: EXW, FOB, DDU.
24-hours technical support and on-line service.
