Home /Products/Panasonic PTZ Camera/72.5Â ° Wide angle lens + 12x optical zoom all in one H DMI 3G-SDI 12x zoom conference camera ptz for tracking teacher or student in classroom

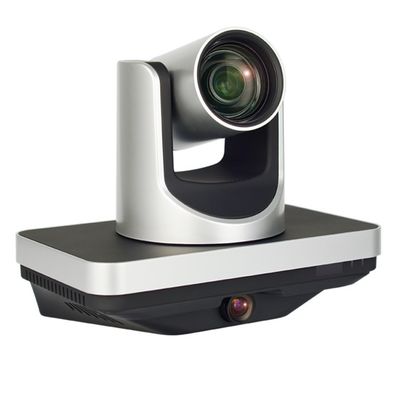

72.5Â ° Wide angle lens + 12x optical zoom all in one H DMI 3G-SDI 12x zoom conference camera ptz for tracking teacher or student in classroom

1.0 Pieces
MOQ
72.5Â ° Wide angle lens + 12x optical zoom all in one H DMI 3G-SDI 12x zoom conference camera ptz for tracking teacher or student in classroom
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Video Conference System
Function: All In One Video Conferencing Endpoints
Simultaneous Interpretation: No
Model Number: FT-V800B
OEM/ODM: Custom Logo Label Manual/ Package Housing/Case Camera And Solutions
Name: 12x 20x Zoom Professional Auto Tracking Classroom Lecture Teaching
Sensor: Panasonic's 1/2.7 Inch, 2.07 Million Effective Pixels HD CMOS Sensor
Main Features: 72.5° Wide-angle Lens + 12x Optical Zoom
Ultra-High Frame Rate: The Output Frame Rate Up To 60fps In 1080p
H.265 Support: H.265 Encoding Support
All-In-One Design: All-In-One Design, Can Output 5 Channel HD Video
Lens: 12x, F3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Noise Reduction: 2D&3D Digital Noise Reduction
Weight: 2.0Kg
Basic Infomation
Model Number: FT-V800B
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 3000 Piece/Pieces per Month
Product Description
Model NO.
FT-V800B

















Main Features
●All-in-One Design
All-in-One design, can output 5 channel HD video (3 channel for close-up camera,
2 channel for panorama camera) at the same time.both teacher tracking and
student traking are use the same devide.
●Changeable Lens
Panorama camera can replace the lens, compatible M12 mount lens, easy to use
for different size classroom.
●Adjustable Viewing Angle
Panorama camera can adjust viewing angle in vertical(-20° ~ 0°), conveninet
installation and degugging.
●High Efficient Traking
Built-in image recognition and traking algorithms, can be tracking realized
without any auxiliary camera or tracking host.
●Same Image Style
Both panorama camera and close-up camera use the same ISP, make sure
the image output have the same brightness, color, style,etc.
●Easy Configuration
Easy to make a configuration for tracking, direct connect by Ethernet, just need
make some base parameters for configuration, largeengineering debugging time
and cost will be save.
●72.5° Wide-angle Lens + 12x optical zoom
Close-up camera use 72.5° wide-angle high quality lens, support 12x optical zoom,
and 16x digital zoom.
●H.265 Support
H.265 encoding support, enabling full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS
sensor, can reach maximum 1920 x 1080 highresolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Close-up camera support AAC audio encoding, better sound quality and smaller
bandwidth.
●Local Storage
Close-up camera support
Name
All-in-One HD Teaching Tracking Camera
Close-up Camera
Video System
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor
1/2.8'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom
16x (optional)
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
Video S/N
≥55dB
Horizontal Angle of View
72.5° ~ 6.9°
Vertical Angle of View
44.8° ~ 3.9°
Horizontal Rotation Range
±170°
Vertical Rotation Range
'-30° ~ +90°
Pan Speed Range
1.7° ~ 100°/s
Tilt Speed Range
1.7° ~ 69.9°/s
H & V Flip
Support
Local Storage
Support
Number of Preset
255
Preset Accuracy
0.1°
Panorama Camera
Video System
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor
1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens Mount
M12 Mount
Teacher Panorama Lens
f=6mm, F1.8, AoV about 60°(default, changeable)
Student Panorama Lens
f=3.24mm, F1.8, AoV about 95° (default, changeable)
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Digital Noise Reduction
2D, 3D digital noise reduction
Backlight Compensation
Support
Image Freeze
Support
H & V Flip
Support
Network Features
Video Compression
H.264 / MJEPG
Video Stream
First Stream, Second Stream
First Stream Resolution
1920x1080, 1280x720, 1024x576
Second Stream Resolution
720x576, 720x480, 320x240
Video Bit Rate
32Kbps ~ 20480Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Support protocols
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
HD Output
1xHDMI: Version 1.3 2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface
2xRJ45: 10M/100M Ethernet Interface
Audio Interface
'1-ch: 3.5mm Audio Interface, Line In
USB
'1xUSB2.0: Type A female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
2xRS232 Out: 8pin Min DIN, Max Distance: 30m
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.5A (Max)
Operating Temperature
'-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
'-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
18W (Max)
Size
240mm x 144mm x 200mm
Net Weight
2.0Kg
MTBF
30000h
