Home /Products/IP CCTV Camera/Hikvision Compatible CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera Face Detection in stock

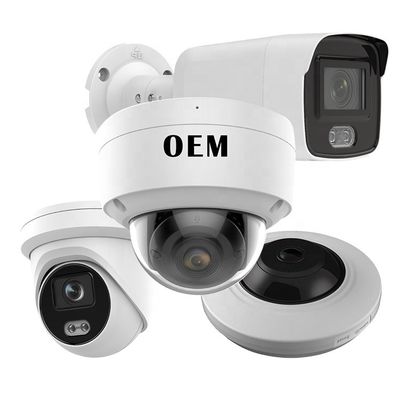

Hikvision Compatible CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera Face Detection in stock

1.0 Pieces
MOQ
Hikvision Compatible CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera Face Detection in stock
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DS-2CD2XXXG0-I
Warranty: 2 Years, 3Years
Special Features: Face Detection, NIGHT VISION, Vandal-proof, Motion Detection, People Counting
Sensor: CMOS
Style: Dome Camera, Fisheye Camera, Eyeball Camera, BULLET CAMERA
Function: Two-way Audio, Alarm I/O, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Vandal-proof
Video Compression Format: H.265
Data Storage Options: NVR, Micro SD Card
Application: Indoor, Outdoor
Customized Support: Online Technical Support, Customized Logo, OEM, ODM
Product Name: 2MP 4MP 8MP IP Security CCTV Camera
Resolution: 2mp, 4mp, 8mp, 4K
Lens: Fixed /Varifocal
Video Compression: H.265/H.264/H.264+/H.265+/MJPEG
Storage: Built-in Micro SD/SDHC/SDXC Slot, Up To 256GB
POE: Support
WDR: 120db
IR Distance: >30m
Audio: Yes
Certification: Ce, FCC
Basic Infomation
Certification: ce, FCC
Model Number: DS-2CD2XXXG0-I
Payment & Shipping Terms
Packaging Details: Original brand packaging, Neutral packaging.OEM packaging. Compatible Hikvision CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera in Stock
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Compatible Hikvision CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera in Stock
Products Description

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials

Product Paramenters

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusFixed
  • Lens Type2.8/4/6/8 mm
  • FOV2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
  • ApertureF1.6
  • Lens MountM12
  • Aperture TypeFixed
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution2688 × 1520
  • Main Stream

    50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

    60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Target CroppingNo
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video OutputNo
  • On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, face detection
  • General
  • Firmware Version5.6.3
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
  • Camera DimensionCamera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2"),Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
  • Camera WeightCamera: Approx. 610 g (1.3 lb.),With Package: Approx. 820 g (1.8 lb.)
  • Approval
  • ProtectionIK10, IP67
Company Profile

Bejing Sinlay technology limited is a young ,creative and energetic company located in beijing.with a strong focus on service and providing innovative,high quality and competitively priced products including Hikvision/dahua CCTV Camera,IP Video solutions and so on.
Our products are sold far to Europe, America, Southeast Asia and other countries and regions. High quality, good price, on time delivery and sincere service are our value and promises to our customers. As an enterprise integrating manufacture and sales, we have confidence to launch more competitive products to cope with severe competition. Sinlay is your sincere partner!

FAQ

01

How to confirm whether the product is Dahua and Hikvision genuine English version?

You can download software in the official website of Dahua and Hik vision,only Dahua and Hik vision genuine product is compatible with the software.And we promise all of our products are Dahua and Hik vision genuine products.

02

When will you ship my order？

Ordinary,once we get confirmation for payment,we will ship order within 1-2 days.

03

Can I install the IP camera by myself?

Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.

04

How is your after-sale service?

Three engineers work more than five years we will respond your technical support within 24 hours.

05

Do you support drop shipping?

Yes,your drop shipping is aviable.

06

How about warranty?

Two years warranty.


Compatible Hikvision CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera in Stock
Compatible Hikvision CCTV NVR Security Systems OEM 2MP 4MP 8MP 4K Dome Bullet POE IP Camera in Stock
